MessageSujet: Help on power for Karotz   Help on power for Karotz Icon_minitimeVen 6 Mar 2015 - 8:34

Hi,
I recovered a Karotz on ebay but it does not have power supply and battery.
Does anyone have information on the connector pin?
help!!
nabzcryriver
thanksss
Carlo
Revenir en haut Aller en bas
DrTofu
Lapin nain
Lapin nain


Localisation : Italy
Nbr de messages : 12
Carottes : 2965

Help on power for Karotz Empty
MessageSujet: Re: Help on power for Karotz   Help on power for Karotz Icon_minitimeSam 7 Mar 2015 - 2:11

carlo64 a écrit:
Hi,
I recovered a Karotz on ebay but it does not have power supply and battery.
Does anyone have information on the connector pin?
help!!
nabzcryriver
thanksss
Carlo

I really hope it can be useful

Help on power for Karotz 2015-010

Mine is:

100-240V 50-60Hz 300mA
5V - 2000mA
- ---(o-- +

As long as it can fit confortably under its bottom piece (it's the same standard L jack the Nabaztag/Tag used to have and many universal adapters have too) and has those voltages it should be fine yellownabzsmile

Furthermore, Karotz have no batteries. Mindscape promised us a battery pack, Aldebaran pushed the date forward in time, then abandoned the Karotz project and the battery pack became vaporware.
Revenir en haut Aller en bas
carlo64
Bronze Nabz
Bronze Nabz


Localisation : italia
Nbr de messages : 160
Carottes : 1904

Help on power for Karotz Empty
MessageSujet: Re: Help on power for Karotz   Help on power for Karotz Icon_minitimeSam 7 Mar 2015 - 9:07

Hi DrTofu,
unfortunately my problem is more serious ...
I miss some connector that should end with the plug that you quote..
follows the photo.
You can control what have you inside the battery compartment?
thanks
Carlo

Help on power for Karotz IMG_20150307_084910

DrTofu a écrit:
carlo64 a écrit:
Hi,
I recovered a Karotz on ebay but it does not have power supply and battery.
Does anyone have information on the connector pin?
help!!
nabzcryriver
thanksss
Carlo

I really hope it can be useful

Help on power for Karotz 2015-010

Mine is:

100-240V 50-60Hz 300mA
5V - 2000mA
- ---(o-- +

As long as it can fit confortably under its bottom piece (it's the same standard L jack the Nabaztag/Tag used to have and many universal adapters have too) and has those voltages it should be fine yellownabzsmile

Furthermore, Karotz have no batteries. Mindscape promised us a battery pack, Aldebaran pushed the date forward in time, then abandoned the Karotz project and the battery pack became vaporware.
Revenir en haut Aller en bas
Thotho90
Gold Nabz
Gold Nabz
Thotho90

Age : 28
Localisation : Maubeuge (59)
Nabaztag : Nabzster (Tag:Tag) et Karter (Karotz)
Nbr de messages : 651
Carottes : 2065

Help on power for Karotz Empty
MessageSujet: Re: Help on power for Karotz   Help on power for Karotz Icon_minitimeSam 7 Mar 2015 - 14:52

A missing piece to your Karotz is a plastic part that goes between the electrical connector and the pins inside the Karotz
These are pictures of the missing piece:

Help on power for Karotz Img_2310
Help on power for Karotz Img_2311
Help on power for Karotz Img_2312

If the connection is not the same as the Nabaztag: tag, it is smaller (below the Nabazta: tag and above Karotz) :

Help on power for Karotz Img_2313
Revenir en haut Aller en bas
carlo64
Bronze Nabz
Bronze Nabz


Localisation : italia
Nbr de messages : 160
Carottes : 1904

Help on power for Karotz Empty
MessageSujet: Re: Help on power for Karotz   Help on power for Karotz Icon_minitimeSam 7 Mar 2015 - 15:35

...
I begin to understand...
you can use a tester to understand which of the six contacts go to the plug of the transformer?

I opened the rabbit and all six are connected on the other side .. :-(

hoping there are no internal circuits into a plastic part....

thanks
Carlo
Revenir en haut Aller en bas
Thotho90
Gold Nabz
Gold Nabz
Thotho90

Age : 28
Localisation : Maubeuge (59)
Nabaztag : Nabzster (Tag:Tag) et Karter (Karotz)
Nbr de messages : 651
Carottes : 2065

Help on power for Karotz Empty
MessageSujet: Re: Help on power for Karotz   Help on power for Karotz Icon_minitimeSam 7 Mar 2015 - 17:31

I would look at it tomorrow, then I go to work.
I do not think there have a circuit inside given the weight, I think it's a plastic box with pine son that go, I will try to look see which pin wire will go ...
Revenir en haut Aller en bas
carlo64
Bronze Nabz
Bronze Nabz


Localisation : italia
Nbr de messages : 160
Carottes : 1904

Help on power for Karotz Empty
MessageSujet: Re: Help on power for Karotz   Help on power for Karotz Icon_minitimeSam 7 Mar 2015 - 18:04

Thotho90 a écrit:
I would look at it tomorrow, then I go to work.
I do not think there have a circuit inside given the weight, I think it's a plastic box with pine son that go, I will try to look see which pin wire will go ...

nabzjump

thanks!
Revenir en haut Aller en bas
Thotho90
Gold Nabz
Gold Nabz
Thotho90

Age : 28
Localisation : Maubeuge (59)
Nabaztag : Nabzster (Tag:Tag) et Karter (Karotz)
Nbr de messages : 651
Carottes : 2065

Help on power for Karotz Empty
MessageSujet: Re: Help on power for Karotz   Help on power for Karotz Icon_minitimeDim 8 Mar 2015 - 14:41

My voltmeter decided not to work ... (I'll go look for a new tomorrow to complete information)

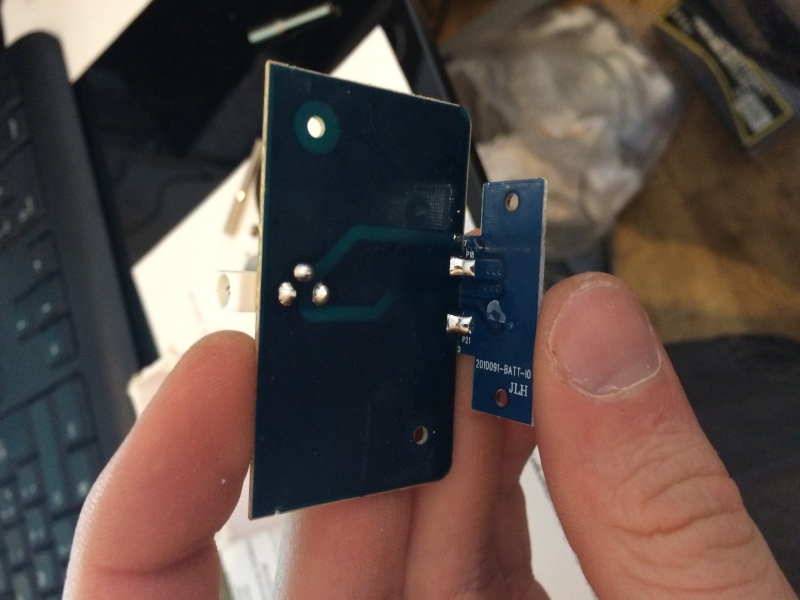

So I opened the box to see coment is done inside, and there on a circuit but not top component, just the connection (it was easier to have put two wire ...)

For me the + and - go to pins 2 and 5 (trying to follow the circuit) but I test it tomorrow;)

I'll put the pictures that I made, now that I opened it and I'll look at it I would look good on the creation of a battery to make it more autonomous


Help on power for Karotz Img_2314
Help on power for Karotz Img_2316
Help on power for Karotz Img_2317
Help on power for Karotz Img_2318
Help on power for Karotz Img_2319
Revenir en haut Aller en bas
carlo64
Bronze Nabz
Bronze Nabz


Localisation : italia
Nbr de messages : 160
Carottes : 1904

Help on power for Karotz Empty
MessageSujet: Re: Help on power for Karotz   Help on power for Karotz Icon_minitimeDim 8 Mar 2015 - 18:55

Wow!!
Wonderful! thank you!!!
I'll get right to work!
nabzpee

Carlo
Revenir en haut Aller en bas
carlo64
Bronze Nabz
Bronze Nabz


Localisation : italia
Nbr de messages : 160
Carottes : 1904

Help on power for Karotz Empty
MessageSujet: Re: Help on power for Karotz   Help on power for Karotz Icon_minitimeLun 9 Mar 2015 - 23:02

resolved!  nabzhello1

Help on power for Karotz IMG_20150309_220243

this is the cable incriminated

the color is black for - and yellow for +

power must be over 1000ma otherwise it does not work the usb ...

thanks to all!

Carlo

and now begin the experiments ..
